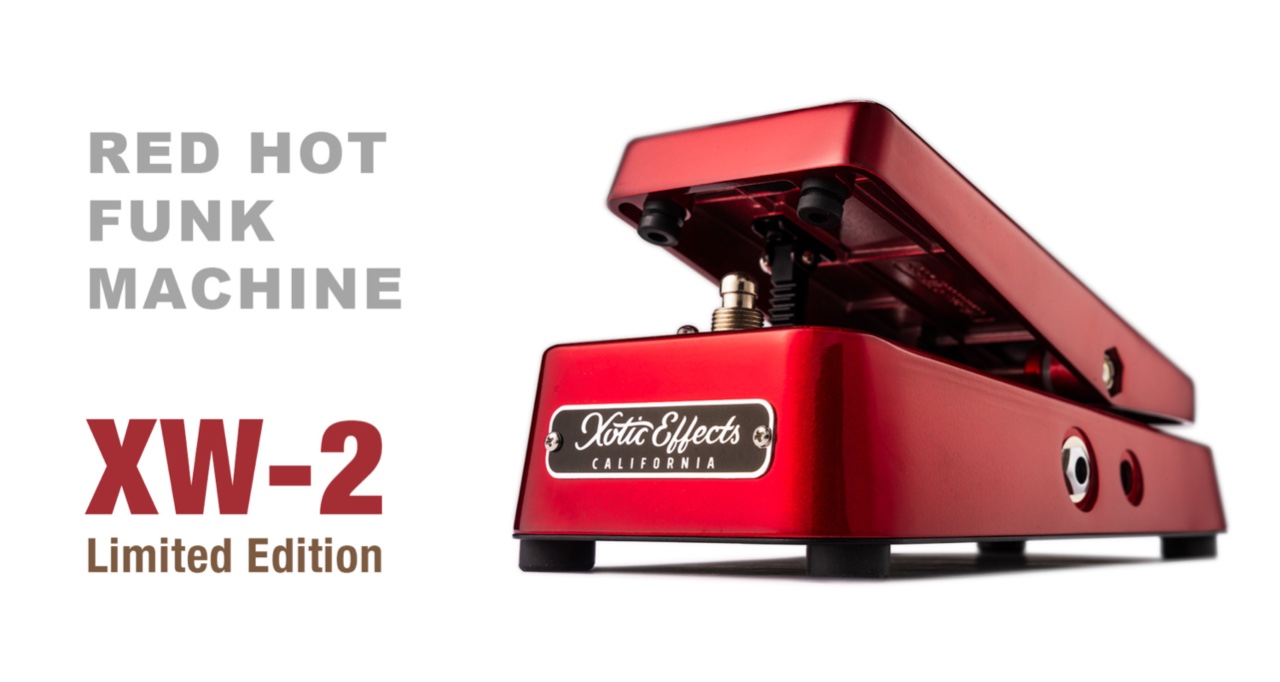

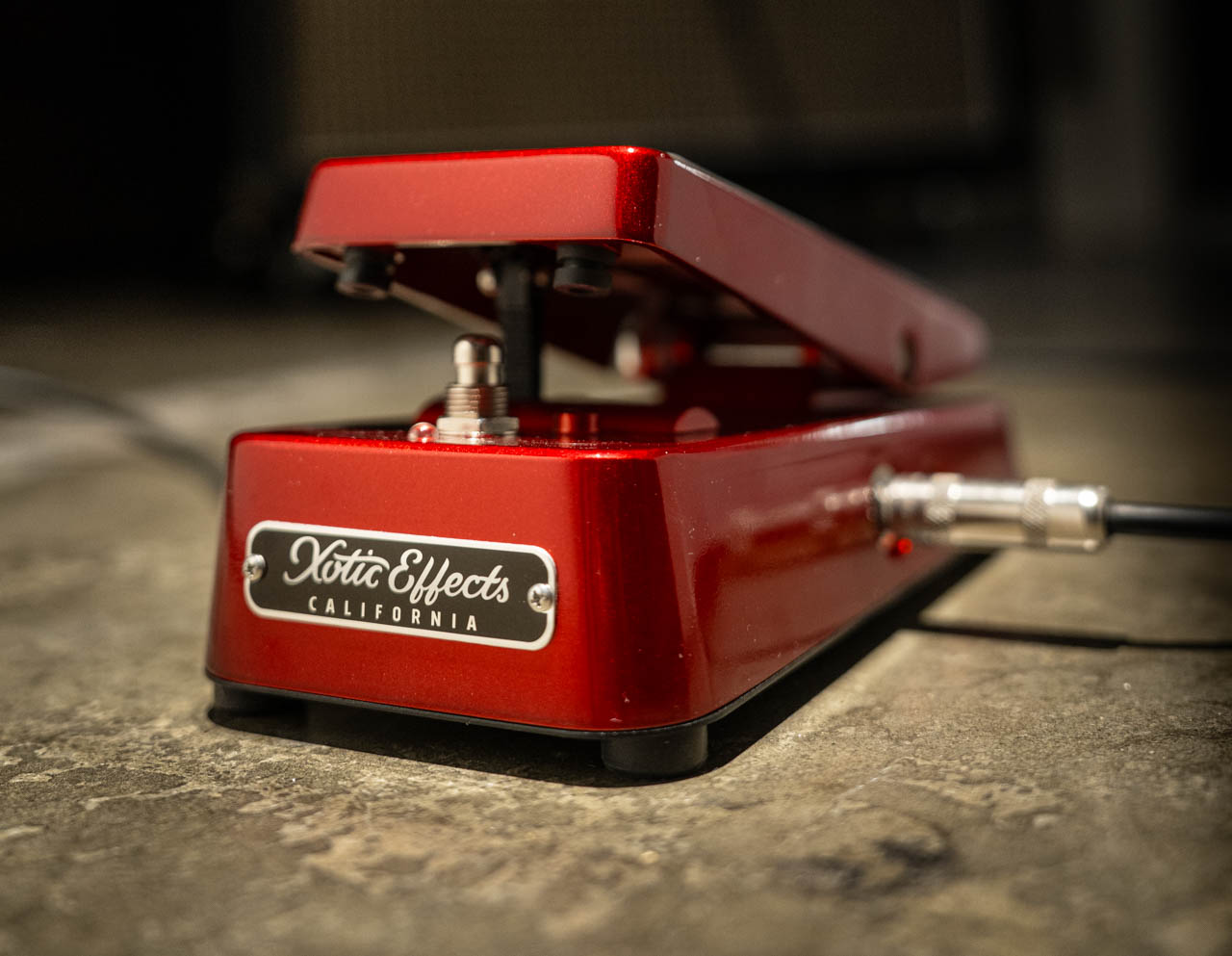

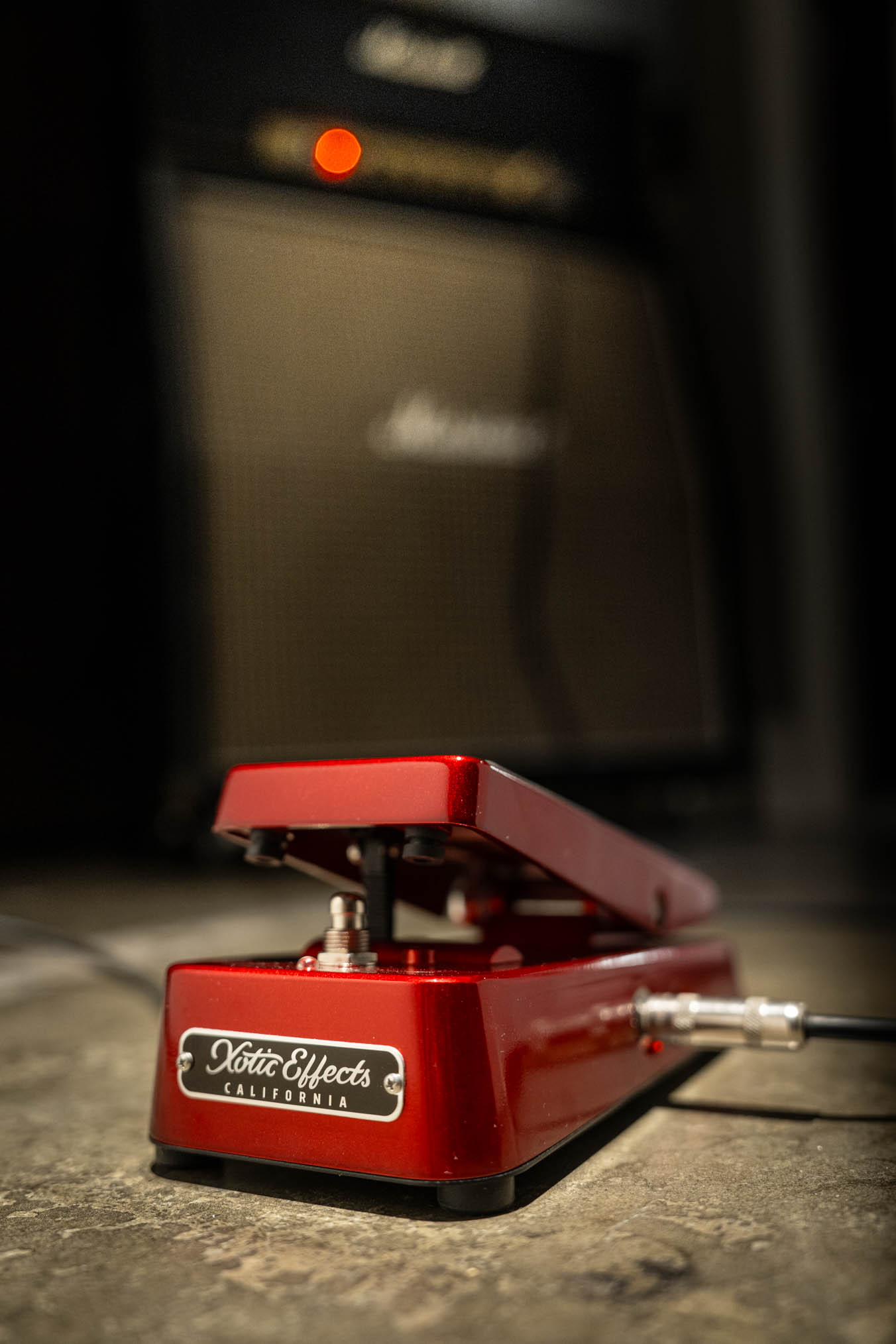

The XW-2 is a refined wah pedal design with an emphasis on

“minimal controls with maximum tone”.

The wah tone and EQ are dialed in to perfection making accessing the perfect wah sound easier than ever.
With plug-and-play simplicity, you can achieve the finest wah sound that will truly elevate your creative ingenuity.
The pedal features custom wound inductor, pot and circuit which not only captures the pure essence of vintage Clyde McCoy (as XW1 did), but also breathes an evolved essence (of wah) that goes beyond vintage.
As with the XW-1, the pedal has a relay-based true bypass switch and adjustable rocker tension to optimize your rocker pedal to your liking.
FIND A DEALER BUY NOW

"Incredibly musical and vocal…
the way it was always supposed to be."
-Allen Hinds

The XW-2 is a refined wah pedal design with an emphasis on

“minimal controls with maximum tone”.

The wah tone and EQ are dialed in to perfection making accessing the perfect wah sound easier than ever.
With plug-and-play simplicity, you can achieve the finest wah sound that will truly elevate your creative ingenuity.
The pedal features custom wound inductor, pot and circuit which not only captures the pure essence of vintage Clyde McCoy (as XW1 did), but also breathes an evolved essence (of wah) that goes beyond vintage.
As with the XW-1, the pedal has a relay-based true bypass switch and adjustable rocker tension to optimize your rocker pedal to your liking.
FIND A DEALER BUY NOW
overview

based on the Holy Grail wah1967-1968 Italian-built Clyde McCoy Wahs

With the Xotic XW-2 Wah you don’t get one or three sounds in one pedal, you get unlimited sounds with unique controls that shape and contour your sound the way you hear it!

more

Self-lubricating Nylon Bushing

Self-lubricating nylon bushing pivot for quiet and smooth operation with fully-adjustable rocker pedal tension.

Self-lubricating Nylon Bushing

Gold contact relay true bypassing

Gold contact relay true bypassing, which allows for transparent true bypass tone, while incorporating ultra reliable switching with minimum one million life cycle.

Gold Contact Relay True Bypassing

20% Smaller Footprint

20% Smaller footprint than conventional wah pedals.

20% Smaller Footprint

Fuzz Friendly Buffering Circuit

Fuzz Friendly Buffering Circuit assures a great sounding wah tone with your favorite fuzz pedals.

Fuzz Friendly Buffering Circuit
specs

Simplicity is bliss

ADJUSTABLE PEDAL TORSION — Fully-adjustable rocker pedal torsion by adjusting Hex nut on the treadle.

LED INDICATOR — The LED indicator is located at the top of the Xotic XW-2 Wah and lights up when the pedal is on. One unique feature of the Xotic XW-2 Wah is the LED will flash if the battery power falls below 50% and indicates that it is time to change the battery.

DC JACK — 2.1mm x 5.5mm 9VDC — Negative Center. When an external power supply is used, the battery is disconnected from the circuit. When using a battery, the life of the battery can be extended if you unplug the input when the effect is not in use for long periods of time. Battery access is through the removal of bottom plate (4 screws).

 Download Manual
Dimensions (W/D/H): D 8.27” (210mm) W 3.94” (100mm) H 2.64 (67mm)
Weight: 2.16lb. (980g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/5mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 1M ohm
Output Impedance: 10k ohm
Nominal Input Signal Level: -20 dBV
Nominal Output Signal Level: -20 dBV

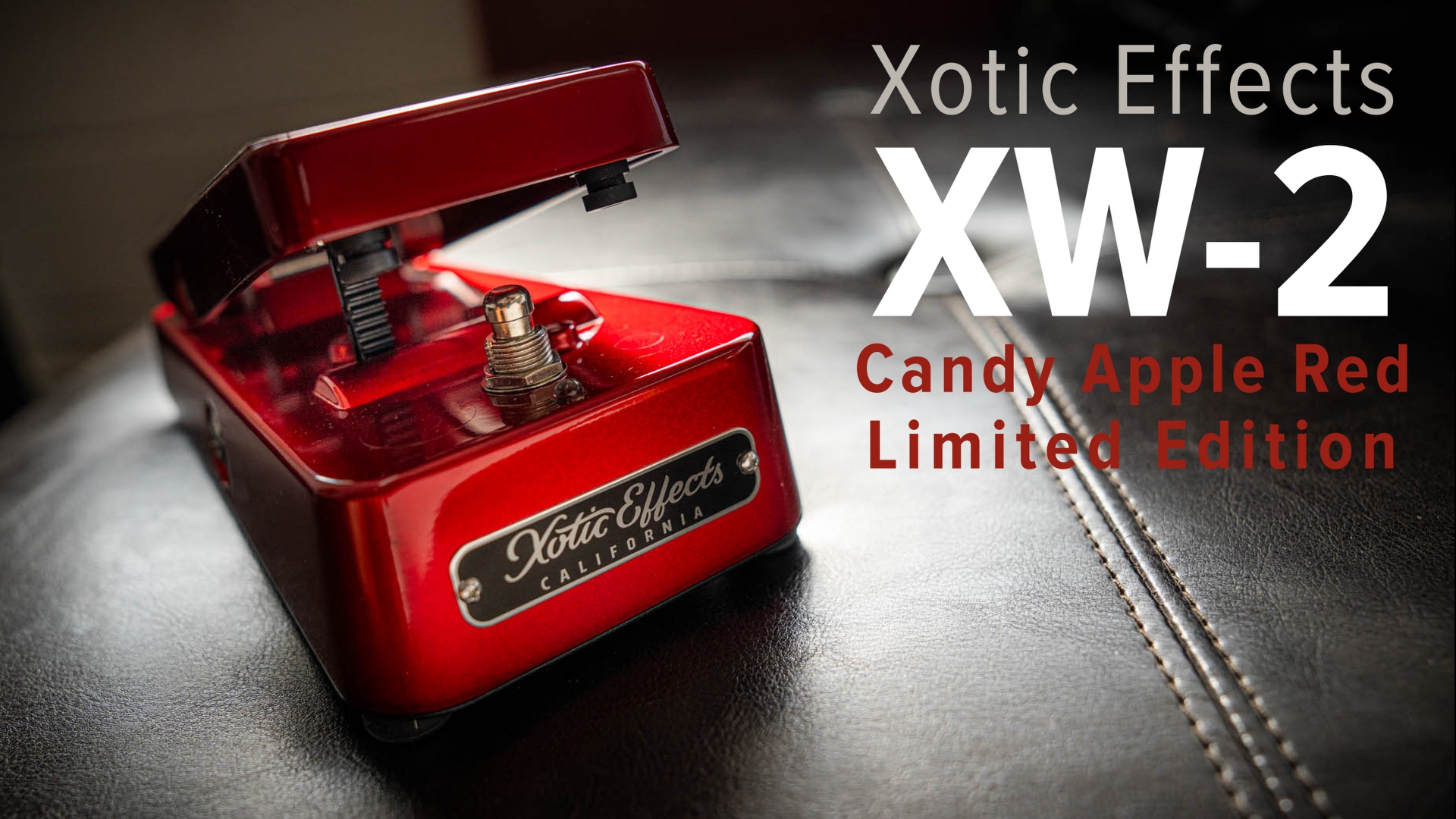

WATCH IT IN ACTION
